EZ 200
Stable Performance
Exceptional Results
EZ 200 is a compact resin 3D printer with a 153 × 78 × 150 mm build volume and 18 μm XY resolution, made in India. Dual linear rails and a reinforced Z axis keep every layer smooth.
Request Quote
Intelligent Features
Exceptional Prints
Open Material System
Compatible with any 405 nm UV resin, giving you the freedom to print beyond a single material ecosystem.
Automated Resin Recovery System
Simplifies handling and makes cleanup effortless

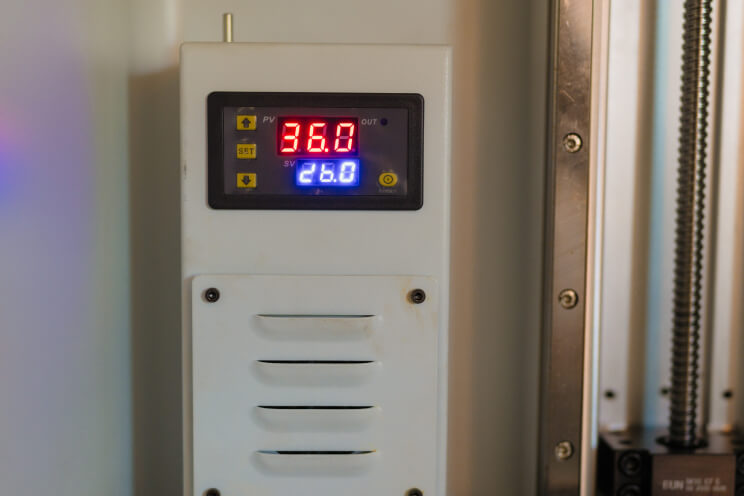

Intelligent Thermally Regulated Chamber
Maintains optimal temperature conditions to ensure consistent print quality
Rigid All-Metal Chassis for Industrial-Grade Durability
Built with a solid all-metal frame to withstand rigorous usage
Fine Detail
Smooth Execution
Printer Properties
| Build volume | 153 X 78 X 150 mm |
|---|---|
| Panel | 9K monochrome LCD |
| XY Resolution | 18 μm |
| Z Resolution | 10 μm |
| Print speed | 30 - 60 mm/hr (Z axis) |
| Optical evenness | Uniform intensity >95% area |
| Layer height | 0.025 - 0.1 mm |
| Z-axis movement | Double guide rail, ball screw integrated system |
| Outer body material | Full metal body |
| Printer control | 5” HD touch screen |
| Design | Integrated metal structure with CNC-processed parts |
| Sensor | Optical sensor (Z-axis end switch) |
| Input | USB, Ethernet, WiFi |
| Supported material | Tough, elastic, nylon-like, ABS, castable (all 405nm resins) |
| File types | STL/OBJ supported |
Features
Intelligent Print Resume After Interruption
Continues printing automatically after any pause or outage
Advanced 9K Monochrome LCD Panel
Uses a high-resolution screen that prints faster, lasts longer, and delivers sharper, more detailed models
Open Material System – Compatible with 3rd-Party Resins
Works with a wide range of resins from different brands, giving more choices and flexibility
Advanced Optical System with >95% Light Evenness
Ensures light spreads evenly across the build area for smooth, consistent prints every time.
Applications
- Castable Jewellery
- Dental Aids
- Art & Models
- Prototyping
- Education
