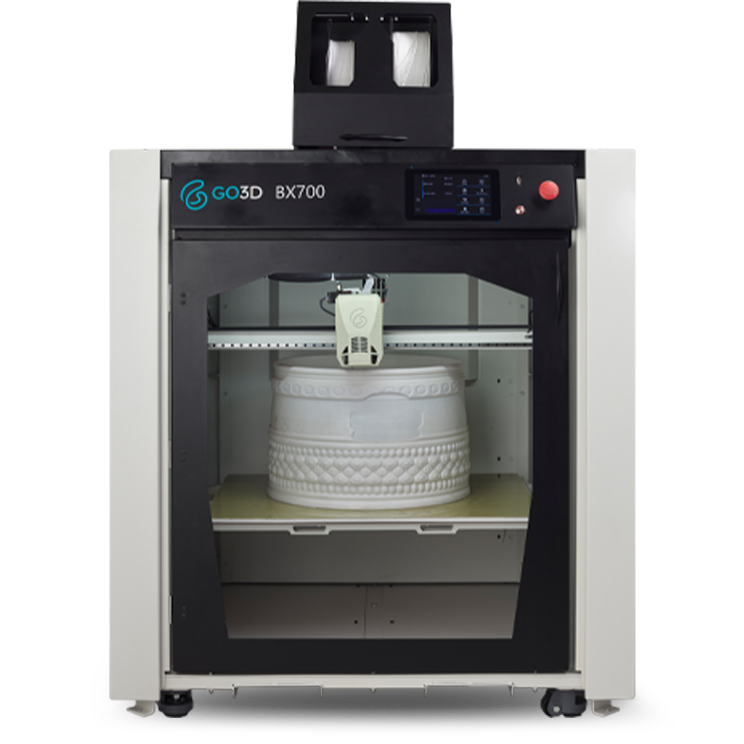

BX 700
Built for Big Ideas and Prints
BX 700 is a high speed FDM 3D printer with a 700 × 500 × 500 mm build volume and up to 4 kg of prints per day, made in India at our Ahmedabad plant. It comes with HEPA and carbon filtration, a camera and web controls.
Request Quote
Purpose-Built Features
Dependable Results
Large Format with High Speed
Heavy-duty build for continuous production, up to 4 kg/day output
Finger Swappable Nozzle
Effortlessly change nozzles without tools. Compatible with 0.4 mm to 1.4 mm nozzles for greater flexibility
Anti-clog Nozzle Technology
Minimises nozzle blockages for smooth printing. Upgradeable with a 500°C extruder and 60°C active chamber for engineering-grade materials

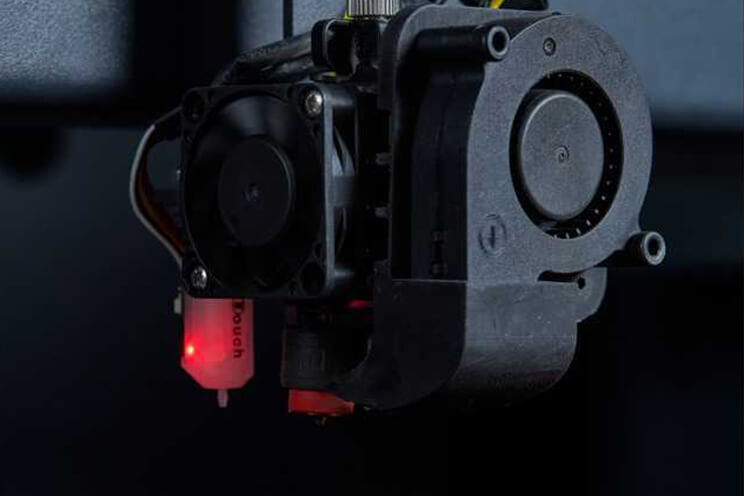

Intelligent Material Sensing
Detects when the material gets stuck and stops printing to avoid damage and ensure smooth operation
Purpose Built for Performance
Printer Properties
| Build volume | 700 (X) * 500 (Y) * 500 (Z) mm |
|---|---|
| Print head | Single Extrusion Print Head |
| Extruder type | Dual Metal Gear Direct Drive - All Metal Extruder |
| Filament diameter | 1.75 mm |
| Nozzle diameter | Swappable 0.4 mm by default (0.6/0.8/1.0/1.2/1.4 mm compatible) Effortless nozzle swap at ambient temperature |
| Layer thickness | 100 - 300 micron with 0.4 mm nozzle 200 - 400 micron with 0.6 mm nozzle 200 - 600 micron with 0.8 mm nozzle 300 - 700 micron with 1 mm nozzle 300 - 800 micron with 1.2 mm nozzle 400 - 1000 micron with 1.4 mm nozzle |
| XYZ Precision | X - 12.5, Y - 12.5, Z - 2.5 microns |
| Print accuracy | ± 250 microns or 0.002 mm per mm of dimensions (whichever is higher) (This accuracy is with 0.4 mm nozzle and 0.2 mm layer height) |
| Print speed | 25 - 120 mm/s (Adjustable based on material, nozzle size, layer height and part geometry) |
| Print head travel speed | Up to 150 mm/s |
| Build plate | Specialised sheet with glass fibre |
| Build plate temperature | Up to 120 °C |
| Supported materials | PLA, TPU, PETG, ABS, ASA, PA, PC, PLA CF, PETG CF (Carbon fibre) |
| Nozzle temperature | Up to 300 °C |
| Connectivity | USB port, WiFi, Ethernet |
| Power requirements (input) | 100 - 240V AC, 50-60Hz |
| Ambient conditions (Operating ambient temp) | 15 - 40 °C, 10 - 90% RH (non-condensing) |
Software
| Supplied software | Go3D Transform |
|---|---|
| Other supported slicer software | Cura, Simplify 3D |
| Supported OS | macOS, Windows and Linux |
| File types | STL, OBJ |
| Machine code | GCODE |
Features
Fail Safe Print Recovery
Automatically resumes printing after power loss or interruptions to prevent failed prints
Dual Filtration System (Hepa+Carbon)
Advanced filtration removes harmful particles and odors for safer, cleaner operation
Auto Bed Leveling
Automatically adjusts the printing platform's height across various points to ensure a consistent distance between the nozzle and the bed
Web-Based Control Interface
Manage and monitor your printer remotely from any device via a user-friendly web interface
Filament Runout Detection
Detects when filament runs out and pauses printing automatically to prevent incomplete prints and wasted materials
Z-motion Platform
Precision-engineered Z-axis movement ensures accurate layer positioning for superior print results
Silicon Heat Bed
Heats up fast and evenly so that prints stick well and don’t curl or lift at the edges
Integrated Camera for Remote Monitoring
Real-time video feed lets you remotely view and monitor your prints from anywhere
Applications
- Rapid Prototyping
- Rapid Tooling
- Jigs & Fixtures
- End-use Parts
- Architectural Models
- Sand & Investment Casting
- Educational Aids
- Electronics / IoT Housing
See it in use: how Ganga Thermopack prints aluminium casting patterns on the BX 700.
