BX 1200
Powering Innovation at Scale
BX 1200 is India’s largest made in India FDM 3D printer, with a 1150 × 1000 × 1200 mm build volume and up to 4 kg of prints per day. Built at our Ahmedabad plant for large casting patterns, furniture and sculptures.
Request Quote
Innovative Features
Maximum Output

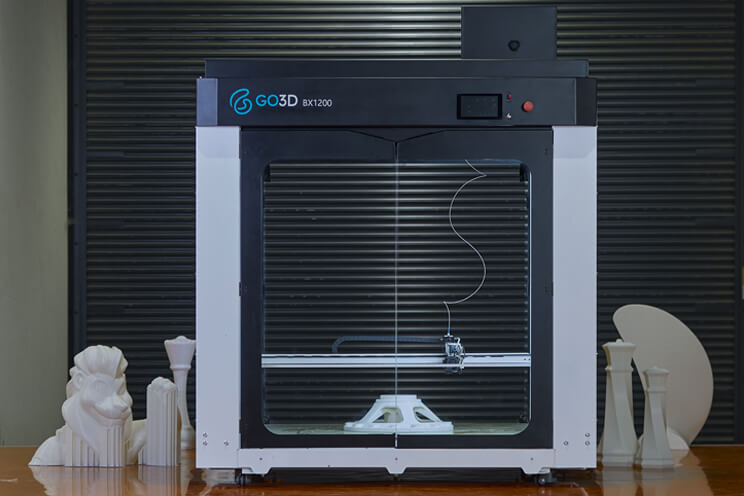

India’s Highest Output 3D Printer
Enables large-format 3D printing with a massive 1150 × 1000 × 1200 mm build volume and output of up to 4 kg/day
Large Format Printing
Built for big ideas, handles large-scale prints for nonstop production
Auto bed Leveling
Ensures perfect first layers by automatically leveling the print bed, minimizing setup time & print errors
Nozzle Diameter up to 1.4 mm
Facilitates faster printing of large objects and supports thicker extrusion for robust, high-volume parts
Large Format
Limitless Possibilities
Printer Properties
| Build volume | 1150 (X) * 1000 (Y) * 1200 (Z) mm |
|---|---|
| Print head | Single Extrusion Print Head |
| Extruder type | Dual Metal Gear Direct Drive - All Metal Extruder |
| Filament diameter | 1.75 mm |
| Nozzle diameter | Swappable 0.4 mm by default (0.6/0.8/1.0/1.2/1.4 mm compatible) Effortless nozzle swap at ambient temperature |
| Layer thickness | 100 - 300 micron with 0.4 mm nozzle 200 - 400 micron with 0.6 mm nozzle 200 - 600 micron with 0.8 mm nozzle 300 - 700 micron with 1 mm nozzle 300 - 800 micron with 1.2 mm nozzle 400 - 1000 micron with 1.4 mm nozzle |
| XYZ Precision | X - 12.5, Y - 12.5, Z - 2.5 microns |
| Print accuracy | ± 250 microns or 0.002 mm per mm of dimensions (whichever is higher) (This accuracy is with 0.4 mm nozzle and 0.2 mm layer height) |
| Print speed | 15 - 100 mm/s (Adjustable based on material, nozzle size, layer height and part geometry) |
| Print head travel speed | Up to 150 mm/s |
| Build plate | Specialised sheet with glass fibre |
| Build plate temperature | Up to 120 °C |
| Supported materials | PLA, TPU, PETG, ABS, ASA, PA, PC, PLA CF, PETG CF (Carbon fibre) |
| Nozzle temperature | Up to 300 °C |
| Connectivity | USB port, WiFi, Ethernet |
| Power requirements (input) | 100 - 240V AC, 50-60Hz |
| Ambient conditions (Operating ambient temp) | 15 - 40 °C, 10 - 90% RH (non-condensing) |
Software
| Supplied software | Go3D Transform |
|---|---|
| Other supported slicer software | Cura, Simplify 3D |
| Supported OS | macOS, Windows and Linux |
| File types | STL, OBJ |
| Machine code | GCODE |
Features
High Flow Extruder System up to 37mm3/sec
Enables faster, consistent printing of large parts by delivering high volumes of filament smoothly
Fail-Safe Print Recovery
Automatically resumes printing after power loss or interruptions to prevent failed prints
Dual Filtration System (Hepa+Carbon)
Advanced filtration removes harmful particles and odors for safer, cleaner operation
Web-Based Control Interface
Manage and monitor your printer remotely from any device via a user-friendly web interface
Filament Runout Detection
Detects when filament runs out and pauses printing automatically to prevent incomplete prints and wasted materials
Silicon Heat Bed
Heats up fast and evenly so that prints stick well and don’t curl or lift at the edges
Integrated Camera for Remote Monitoring
Real-time video feed lets you remotely view and monitor your prints from anywhere
Applications
- Rapid Prototyping
- Rapid Tooling
- Jigs & Fixtures
- End-use Parts
- Architectural Models
- Sand & Investment Casting
- Educational Aids
- Electronics / IoT Housing
Exploring in-house casting patterns? Read how Ganga Thermopack uses GO3D 3D printers for aluminium casting patterns. The case study describes its BX 700 and B 700 workflow.
See it in use: a lion mascot sculpture printed on the BX 1200.
